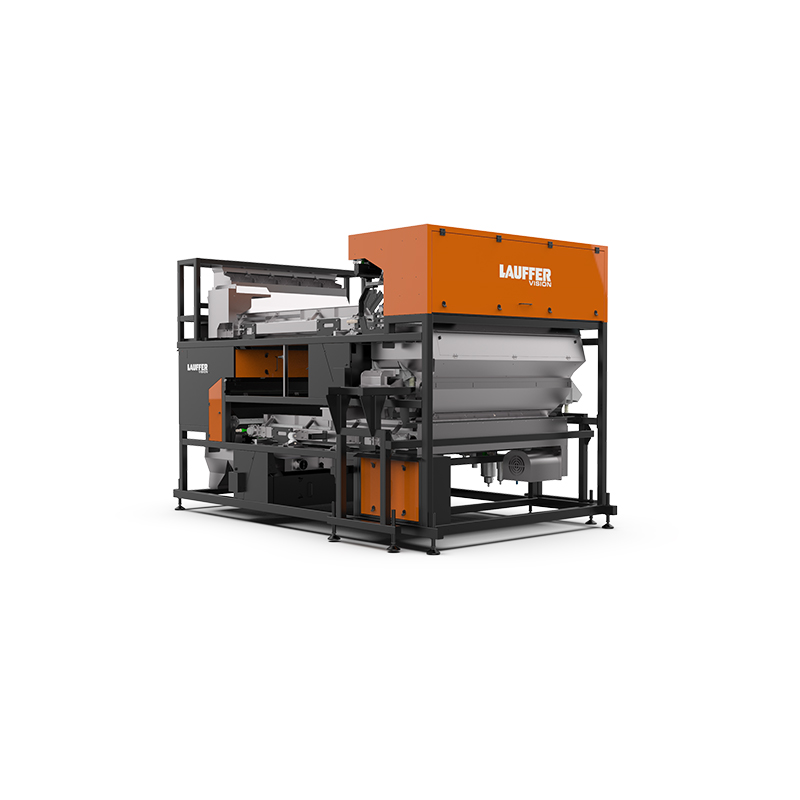

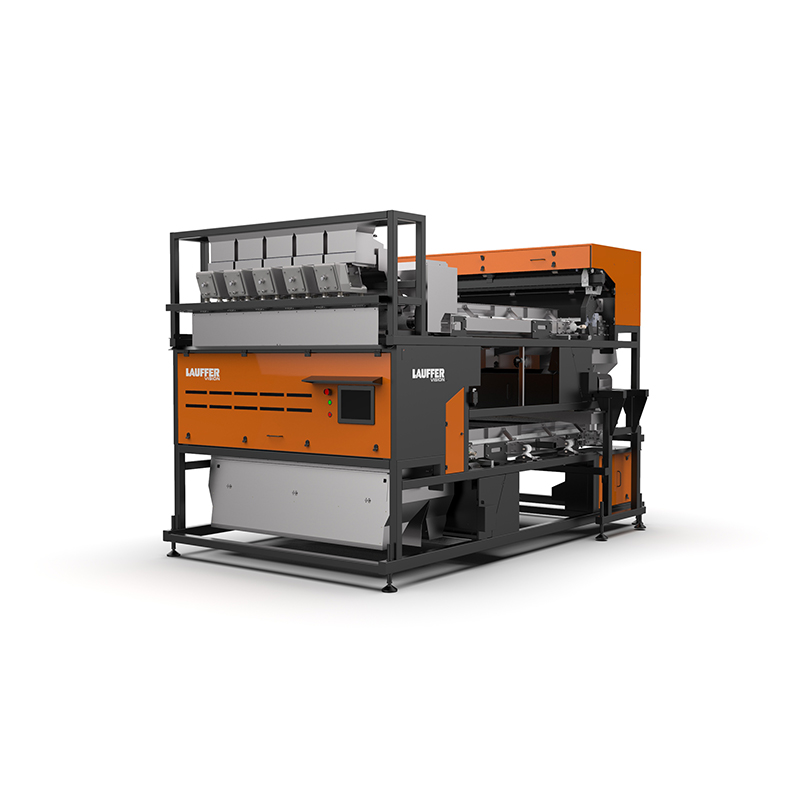

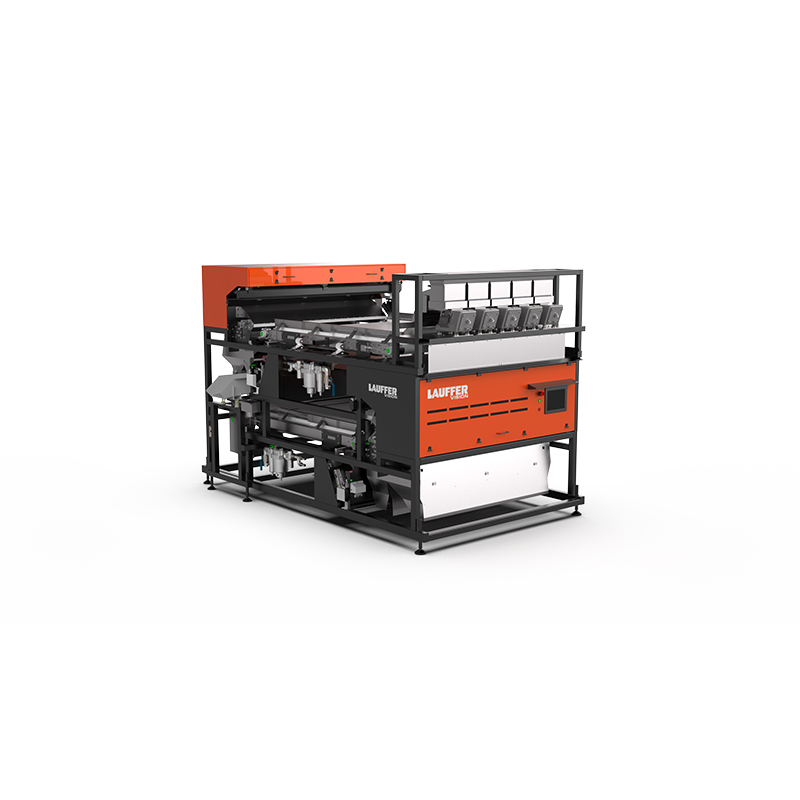

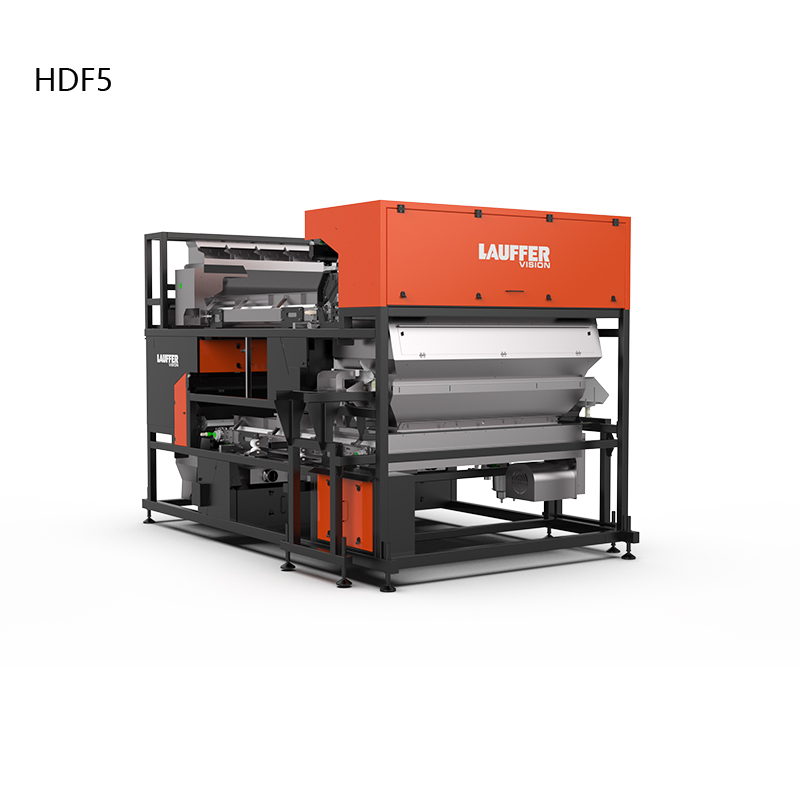

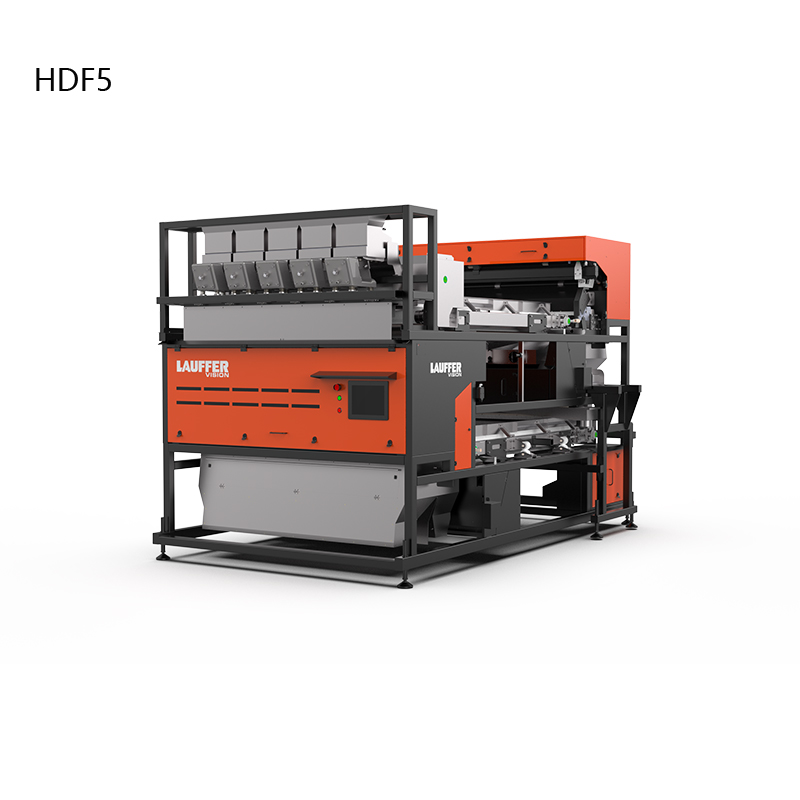

Stein HDF-O Series AI Optical Sorting System

Mining operations present a sorting challenge where valuable minerals are locked within vast volumes of waste rock — industrial minerals and light-colored metal ores often occur in low-grade deposits where traditional processing methods require energy-intensive crushing, grinding, and beneficiation of material that is predominantly barren. For mining operations worldwide, the ability to identify and reject waste rock early in the process — based on intrinsic visual characteristics rather than costly chemical assays — is the key to pre-concentrating valuable ore, reducing downstream processing costs, and extending the economic viability of marginal deposits.

The Stein HDF-O Series is an intelligent machine-vision-based sorting system custom-designed for mining operations worldwide, transforming low-grade run-of-mine material into high-grade concentrate before it ever reaches the processing plant. Leveraging high-resolution RGB imaging technology powered by proprietary AI algorithms, the system achieves precise identification and differentiation of valuable minerals from waste rock based on surface features — making it particularly effective for pre-concentration of industrial minerals and light-colored metal ores.

AI-driven surface feature recognition algorithms — trained on real-world production data using deep learning, with sorting precision refined continuously — ensure consistently high sorting accuracy across diverse ore compositions and mineralogical profiles — while its low cost and intuitive operation deliver an accessible, cost-efficient sorting solution that enables small and medium-sized mines to maximize ore recovery, minimize waste processing, and improve overall mine economics with unmatched confidence.

Technical Features

● High-Resolution RGB Camera System

Precise real-time ore detection based on surface feature differences.

● Proprietary AI Deep Learning Algorithms

Simulates manual picking by training the AI-driven system on mineral identification criteria, with deep learning models continuously retrained on new production data to progressively improve sorting accuracy over time.

● High-Intensity LED Illumination System

Enhances identification of surface characteristics of target ores, minimizing false rejects and improving sorting accuracy.

● Reliable High-Performance Air Ejector System

Powerful high-speed air ejectors, designed and produced in-house, ensure accurate rejection and reliable performance at high-capacity sorting.

● Versatility

Effective for a wide range of industrial minerals (e.g., marble, quartz, feldspar, fluorspar) and metal ores (e.g., tungsten, tin, gold).

Typical Application Scenarios

✦ Pre-concentration of Industrial Minerals

Early rejection of waste rock from industrial minerals such as marble, quartz, feldspar, fluorspar, calcite, dolomite, barite, and talc — significantly reducing the volume of material sent to downstream processing.

✦ Replacement of Manual Sorting

Automating the sorting process previously performed by manual pickers, improving consistency, throughput, and worker safety while reducing labor costs.

✦ Dry Sorting in Water-Scarce Regions

Providing a water-free, reagent-free sorting solution for mines in arid or remote areas where water supply is limited or environmentally restricted.

✦ Pilot Testing and Small-Scale Mining

Serving as an affordable entry-level sorting solution for exploration-stage projects, pilot plants, and small to medium-sized mines with limited capital budgets.

Benefits

✦ Cost Efficiency

Up to 99% sorting accuracy removes 30–70% waste upfront (depending on ore characteristics), significantly reducing downstream costs including grinding energy, reagent consumption, and tailings handling.

✦ Fast ROI

Priced significantly lower than XRT sorters, the system lowers barriers for small and medium-sized mines. By replacing labor-intensive manual picking and reducing downstream processing costs, it typically delivers payback within 6–18 months, depending on ore grade and throughput.

✦ Sustainability

Dry physical sorting eliminates water and reagent use, while early waste rejection reduces energy consumption, tailings volume, and greenhouse gas emissions — aligning with ESG-compliant mining practices.

✦ Operational Simplicity

Intuitive operation and low maintenance requirements minimize the need for specialized technical staff, making it accessible for mines with limited technical resources.

✦ Scalability

Modular design allows flexible configuration to match mine scale — from pilot production to full-scale operations — ensuring a seamless transition as throughput demands grow.
