Technical Features
●High-Resolution RGB Camera System
✦ Precise detection of C&D materials (e.g. aggregates, wood. metals) by colour. size. shape. and texture.enabling clean separation of inert and recyclable fractions.
●Proprietary AI Deep Learning Algorithms
✦ Innovative simulation of manual picking operation by teaching and training the intelligent sorting system all the standards and features of identification and sorting.
●High-Intensity LED Illumination System
✦ Enhanced identification of surface characteristics and features of waste materials. minimising false rejects.
●Reliable High-Performance Air Ejector System
✦ Powerful highspeed air ejectors designed and produced inhouse ensure accurate rejection and reliable performance at highcapacity sorting.
Key Advantages
●Avoidance of uncontrolled landfill disposal
●Reduction of transportation and disposal costs
●Compliance with legal disposal requirements
●Reduction of carbon footprint of processing operations
Typical Applications
●Bulky Waste Recycling
✦ Clean separation of metals. wood. cardboard. inerts & plastics. generates new revenue streams and reduces OPEX.
●Wood Waste Recycling
✦ Instant wood identification and impurity removal. premium wood fractions for the engineered wood sector.
●Metal Waste Recycling
✦ Removes remaining non -ferrous and ferrous metals from large fractions to wires and grain sizes as small as 3cm delivering a high-quality product that meets market requirements.
Applications
Specifications
Detection
Width
(mm)
Air Pressure
(Mpa)
Air Consumption
(m³/min)
Power
(kW)
Unpacked
Weight
(kg)
Dimension
(mm)

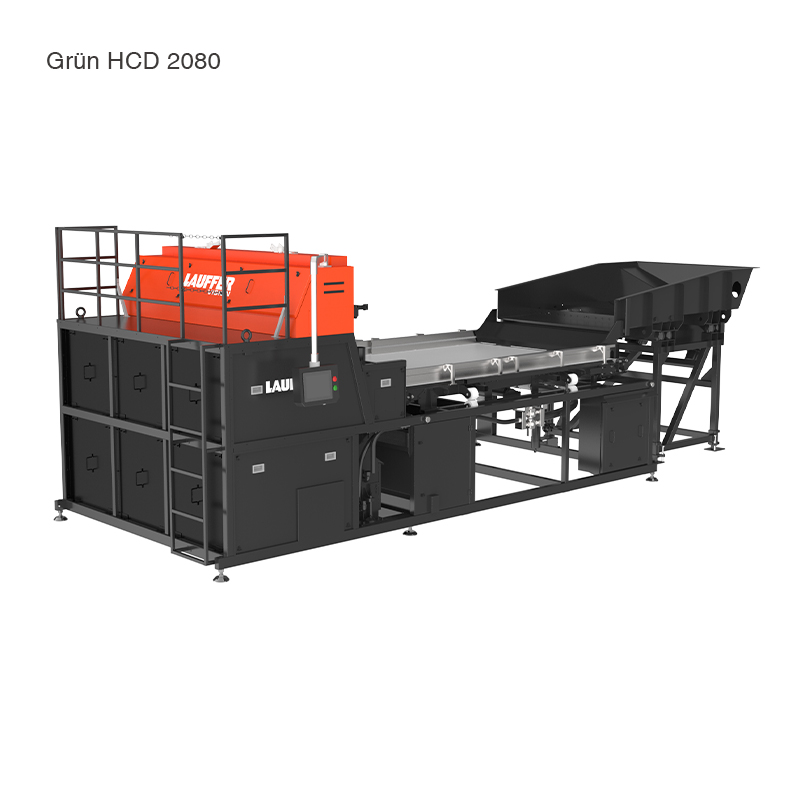

Grün HCD2080

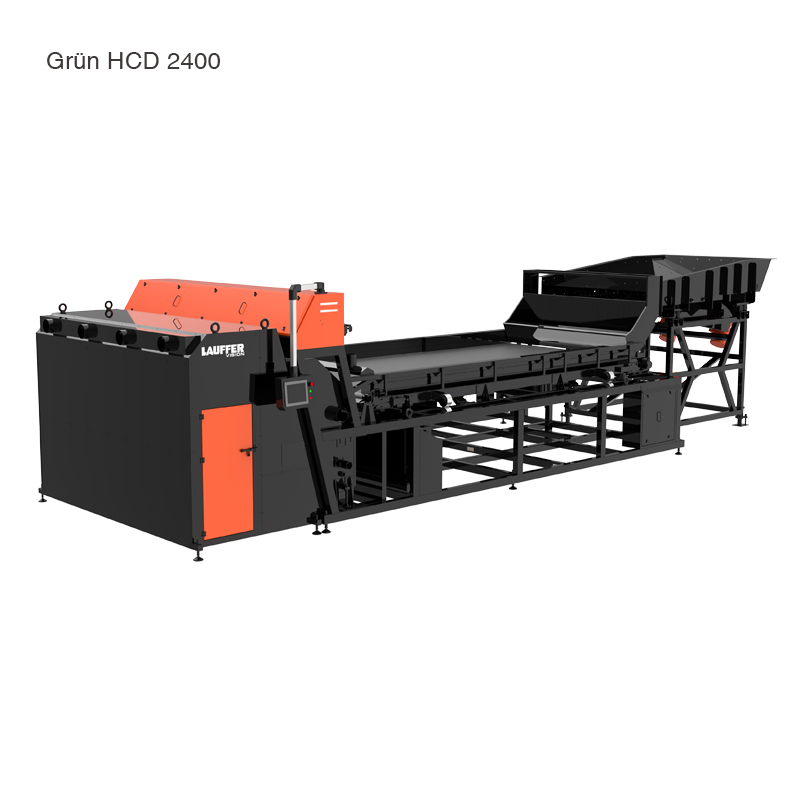

Grün HCD2400
Specifications are approximate and subject to change without notice. Lauffer Vision reserves all rights for modifications.
Model
Air Nozzles
Voltage
2080
192
0.6-0.8
≤21
380V~50/60Hz
7.6
4400
8593×2780×2564
2400
120
0.6-0.8
≤45
380V~50/60Hz
18.4
6700
11300×3380×2665
